Step 3: Managing Your Orders

This guide walks you through the full FBPI order lifecycle — from receiving a webhook notification to handing the shipment off to noon logistics. By the end, your system will process live orders end to end.

How It Works

Every FBPI order follows this sequence:

Key points about this flow:

• Acknowledgment happens at the webhook level. Returning HTTP 200 to noon's webhook notification is how you acknowledge receipt. noon retries delivery on any non-2xx response.
• Retrieving full details requires a GET call. The webhook payload contains only order_nr. Call GetFbpiOrder to get items, statuses, and pricing.
• Marking items out of stock is optional. Only call UpdateOrder if some items cannot be fulfilled. Skip it entirely if all items are available.
• Manifestation is manual. There is no API for creating manifests. You must complete this step in Seller Lab.
• Unacknowledged orders become Killed. If your webhook fails to return HTTP 200 after all retries, noon marks the order as Killed and the partner absorbs the impact.

Prerequisites

• Active FBPI Integration Warehouse with a webhook URL — see Warehouse Setup
• Stock and pricing pushed for your SKUs — see Product and Inventory Setup
• Authenticated API session — see Authenticating Your Requests

---

Step 1 — Retrieve Your Order Details

When a customer places an order, noon sends a notification to your webhook. Return HTTP 200 immediately, then call GetFbpiOrder (GET /fbpi/v1/fbpi-order/{fbpi_order_nr}/get) to retrieve the full order.

warning

Return HTTP 200 to the webhook as quickly as possible — before any downstream processing. If noon does not receive a 2xx within the timeout window, it will retry, and eventually mark the order as Killed.

Python

session = get_authenticated_session()

order_nr = "NFBO123456789"  # extracted from the webhook payload

response = session.get(
    f"https://noon-api-gateway.noon.partners/fbpi/v1/fbpi-order/{order_nr}/get",
    headers={"User-Agent": "MyApp/1.0.0"},
    timeout=30,
)
response.raise_for_status()
order = response.json()

Node.js

const client = await getAuthenticatedClient();

const orderNr = "NFBO123456789"; // extracted from the webhook payload

const response = await client.get(
    `https://noon-api-gateway.noon.partners/fbpi/v1/fbpi-order/${orderNr}/get`,
    { headers: { "User-Agent": "MyApp/1.0.0" } }
);
const order = response.data;

Response:

<!-- from: v1GetFbpiOrderResponse -->
{
  "fbpi_order_nr": "NFBO123456789",
  "mp_code": "noon",
  "mp_order_nr": "NF123456789",
  "mp_country_code": "ae",
  "customer_country_code": "ae",
  "merchant_code": "STR-12345",
  "currency_code": "AED",
  "warehouse_code": "WH-NOON-001",
  "order_created_at": "2026-04-09T08:42:15Z",
  "items": [
    {
      "mp_item_nr": "NFBO123456789-1",
      "partner_sku": "MY-SKU-001",
      "mp_status": "MP_ITEM_STATUS_CONFIRMED",
      "integration_status": "INTEGRATION_ITEM_STATUS_ACKNOWLEDGED",
      "delivered_invoice_price": 149.99,
      "cancellation_reason_code": null
    }
  ]
}

mp_status values — the marketplace's view of the item:

Value	Meaning
MP_ITEM_STATUS_CONFIRMED	Item confirmed and active on the marketplace
MP_ITEM_STATUS_CANCELLED	Item cancelled by the marketplace
MP_ITEM_STATUS_UNSPECIFIED	Default — treat as unresolved

integration_status values — your integration's view of the item:

Value	Meaning
INTEGRATION_ITEM_STATUS_ACKNOWLEDGED	Order received and acknowledged by your webhook
INTEGRATION_ITEM_STATUS_OUT_OF_STOCK	Item marked out of stock by your integration
INTEGRATION_ITEM_STATUS_SHIPPED	Shipment created for this item
INTEGRATION_ITEM_STATUS_UNSPECIFIED	Default — treat as unresolved

You'll know this worked when you receive a response with items populated and integration_status set to INTEGRATION_ITEM_STATUS_ACKNOWLEDGED.

To retrieve customer shipping details, call GetFbpiOrderCustomerData (GET /fbpi/v1/fbpi-order/{fbpi_order_nr}/customer-details/get). See GetFbpiOrderCustomerData.

---

Step 2 — Mark Out-of-Stock Items

If any items in the order cannot be fulfilled, call UpdateOrder (POST /fbpi/v1/fbpi-order/update) to mark them as out of stock before creating a shipment. Skip this step if all items are available.

warning

Unacknowledged items that are not marked OOS and not shipped within the SLA window cause the order to become Killed. A Killed order cannot be recovered.

Python

session = get_authenticated_session()

response = session.post(
    "https://noon-api-gateway.noon.partners/fbpi/v1/fbpi-order/update",
    json={
        "fbpi_order_nr": "NFBO123456789",
        "items": [
            {
                "mp_item_nr": "NFBO123456789-2",
                "status": "UPDATE_ORDER_REQUEST_ITEM_STATUS_OUT_OF_STOCK"
            }
        ]
    },
    headers={"User-Agent": "MyApp/1.0.0"},
    timeout=30,
)
response.raise_for_status()
result = response.json()

Node.js

const client = await getAuthenticatedClient();

const response = await client.post(
    "https://noon-api-gateway.noon.partners/fbpi/v1/fbpi-order/update",
    {
        fbpi_order_nr: "NFBO123456789",
        items: [
            {
                mp_item_nr: "NFBO123456789-2",
                status: "UPDATE_ORDER_REQUEST_ITEM_STATUS_OUT_OF_STOCK"
            }
        ]
    },
    { headers: { "Content-Type": "application/json", "User-Agent": "MyApp/1.0.0" } }
);

The status field accepts one value: UPDATE_ORDER_REQUEST_ITEM_STATUS_OUT_OF_STOCK.

You'll know this worked when a subsequent GetFbpiOrder call shows the marked items with integration_status: INTEGRATION_ITEM_STATUS_OUT_OF_STOCK.

For the full schema, see UpdateOrder.

---

Step 3 — Create a Shipment

Call CreateShipment (POST /fbpi/v1/shipment/create) to register each shipment with noon. Include the noon-issued AWBAirway Bill — a tracking code assigned to each shipment for each package.

Getting an AWB: Call GetNoonLogisticsAWBs (POST /fbpi/v1/shipment/noon-logistics-awbs/get) to get AWB numbers from noon. You can request them in bulk (e.g. 500 at a time) for pre-allocation, or one per shipment.

Python

session = get_authenticated_session()

response = session.post(
    "https://noon-api-gateway.noon.partners/fbpi/v1/shipment/create",
    json={
        "warehouse_code": "WH-NOON-001",
        "integration_shipment_nr": "SHIP-2026-001",
        "fbpi_order_nr": "NFBO123456789",
        "awbs": [
            {
                "courier": "noon",
                "awb_nr": "AWB123456789"
            }
        ],
        "items": [
            {
                "mp_item_nr": "NFBO123456789-1"
            }
        ]
    },
    headers={"User-Agent": "MyApp/1.0.0"},
    timeout=30,
)
response.raise_for_status()
result = response.json()

Node.js

const client = await getAuthenticatedClient();

const response = await client.post(
    "https://noon-api-gateway.noon.partners/fbpi/v1/shipment/create",
    {
        warehouse_code: "WH-NOON-001",
        integration_shipment_nr: "SHIP-2026-001",
        fbpi_order_nr: "NFBO123456789",
        awbs: [
            {
                courier: "noon",
                awb_nr: "AWB123456789"
            }
        ],
        items: [
            {
                mp_item_nr: "NFBO123456789-1"
            }
        ]
    },
    { headers: { "Content-Type": "application/json", "User-Agent": "MyApp/1.0.0" } }
);

Key request fields:

Field	Type	Description
warehouse_code	string	Your integration warehouse code
integration_shipment_nr	string	Your internal shipment ID — no specific format required
fbpi_order_nr	string	The FBPI order number from Step 1
awbs[].courier	string	"noon" for noon logistics, or your courier's name
awbs[].awb_nr	string	AWB number from GetNoonLogisticsAWBs or your courier
items[].mp_item_nr	string	Marketplace item number for each item in this shipment

Response:

<!-- from: FbpiService_CreateShipment 200 response -->
{}

A successful CreateShipment call returns HTTP 200 with an empty body — the status code is the success signal. The response carries no shipment identifier, so use the integration_shipment_nr you supplied (or fbpi_order_nr) to look the shipment up afterwards.

You'll know this worked when a subsequent GetShipment call returns the shipment with a confirmed AWB. See GetShipment.

If a shipment must be cancelled, use CancelShipment.

---

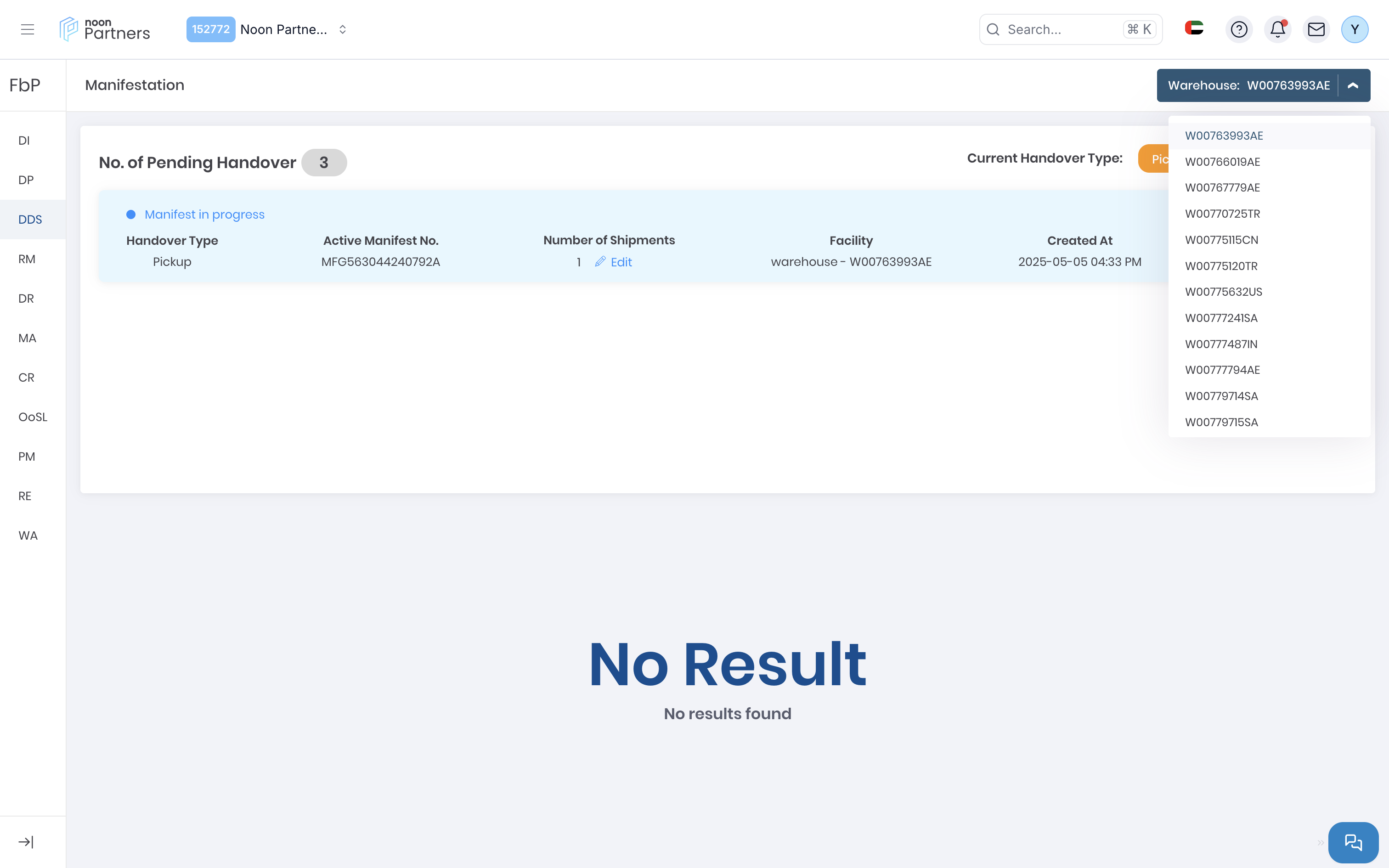

Step 4 — Complete the Manifest

Once shipments are created, they appear as pending in Seller Lab. noon will not schedule a pickup until you create a manifest. There is no API for this step — complete it manually in Seller Lab.

1. Log in to noon Partner Platform.

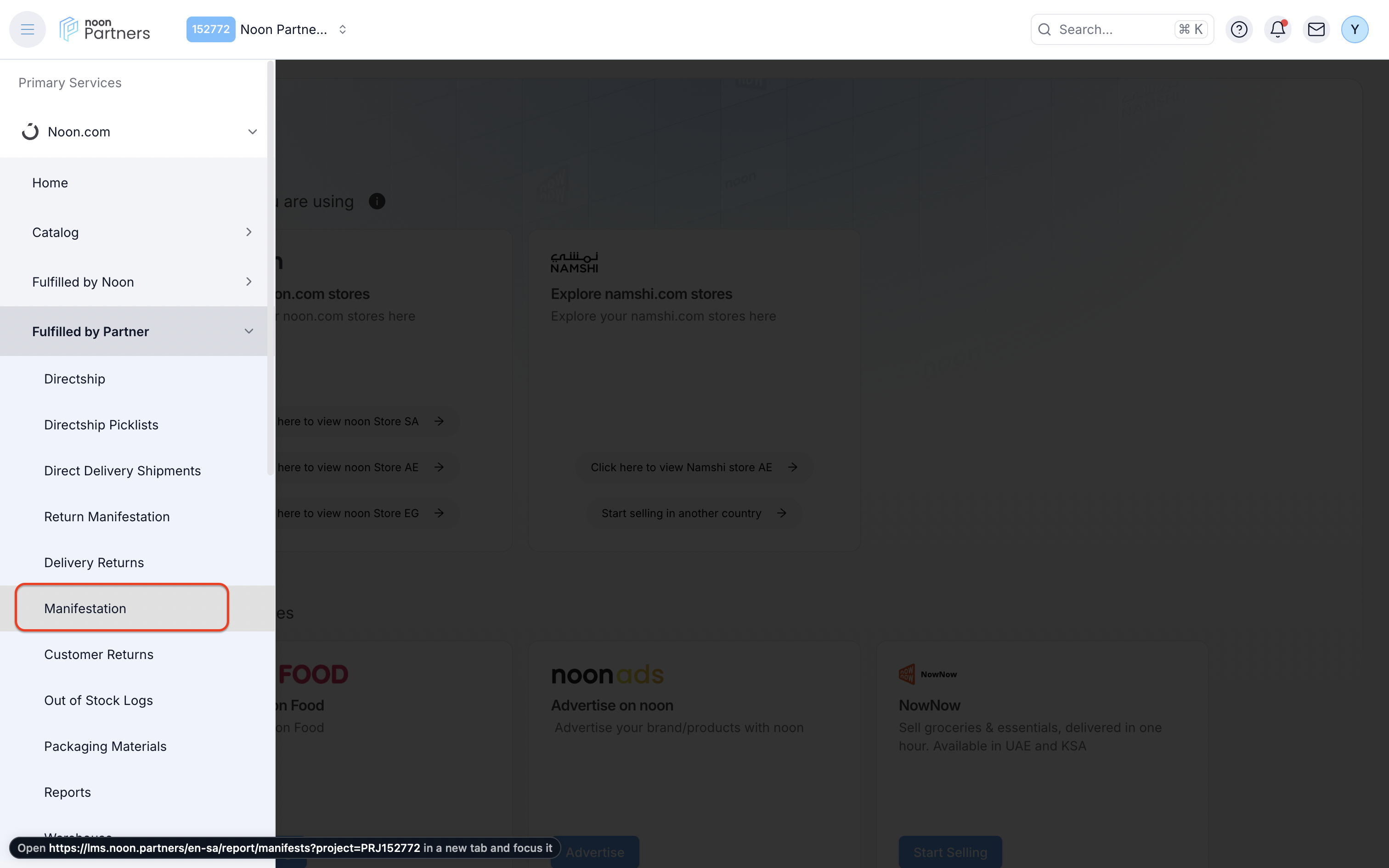

2. Click the menu icon (☰) at the top left and select Fulfilled by Partner → Manifestation.

3. Select your warehouse.

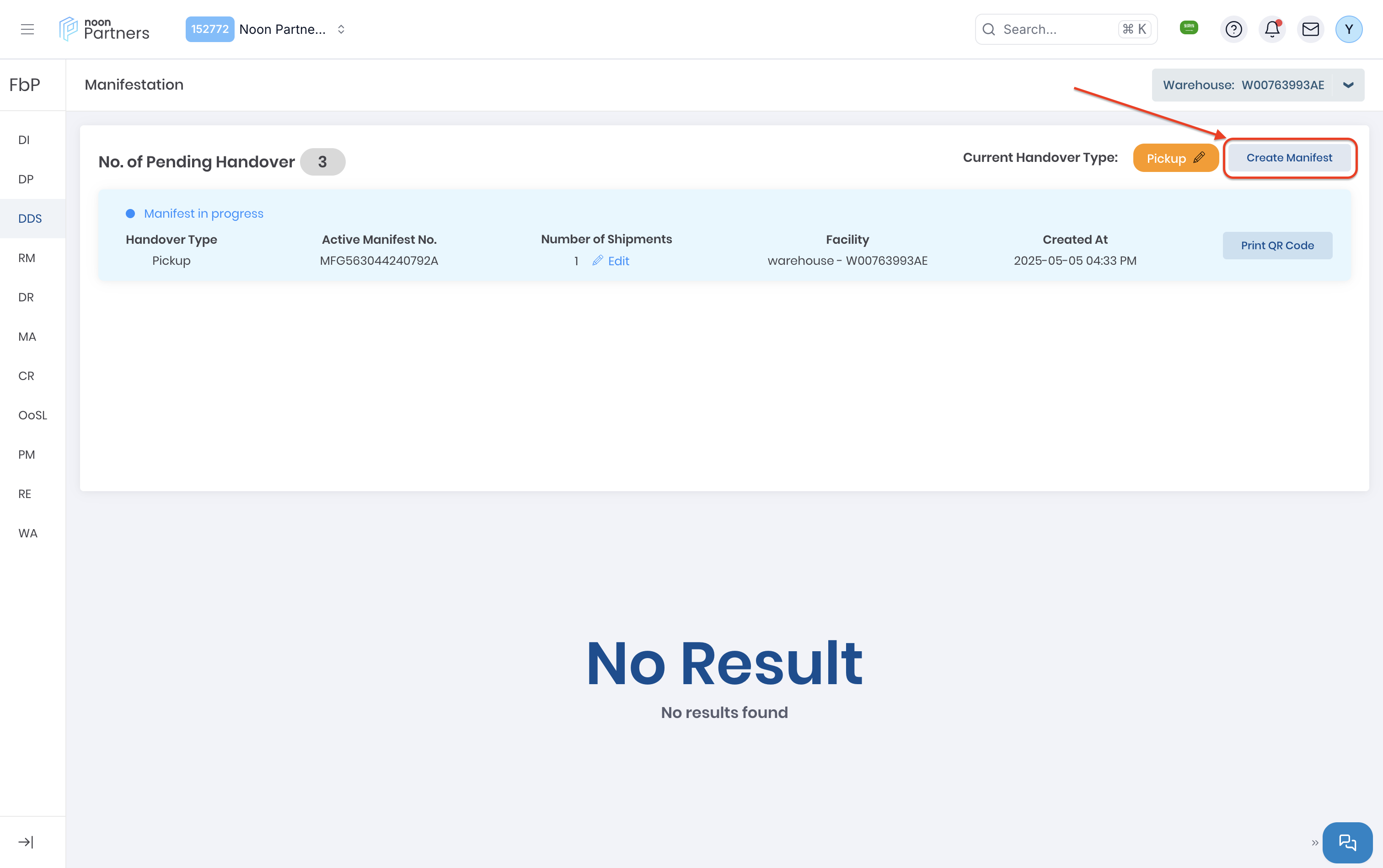

4. Click Create Manifest.

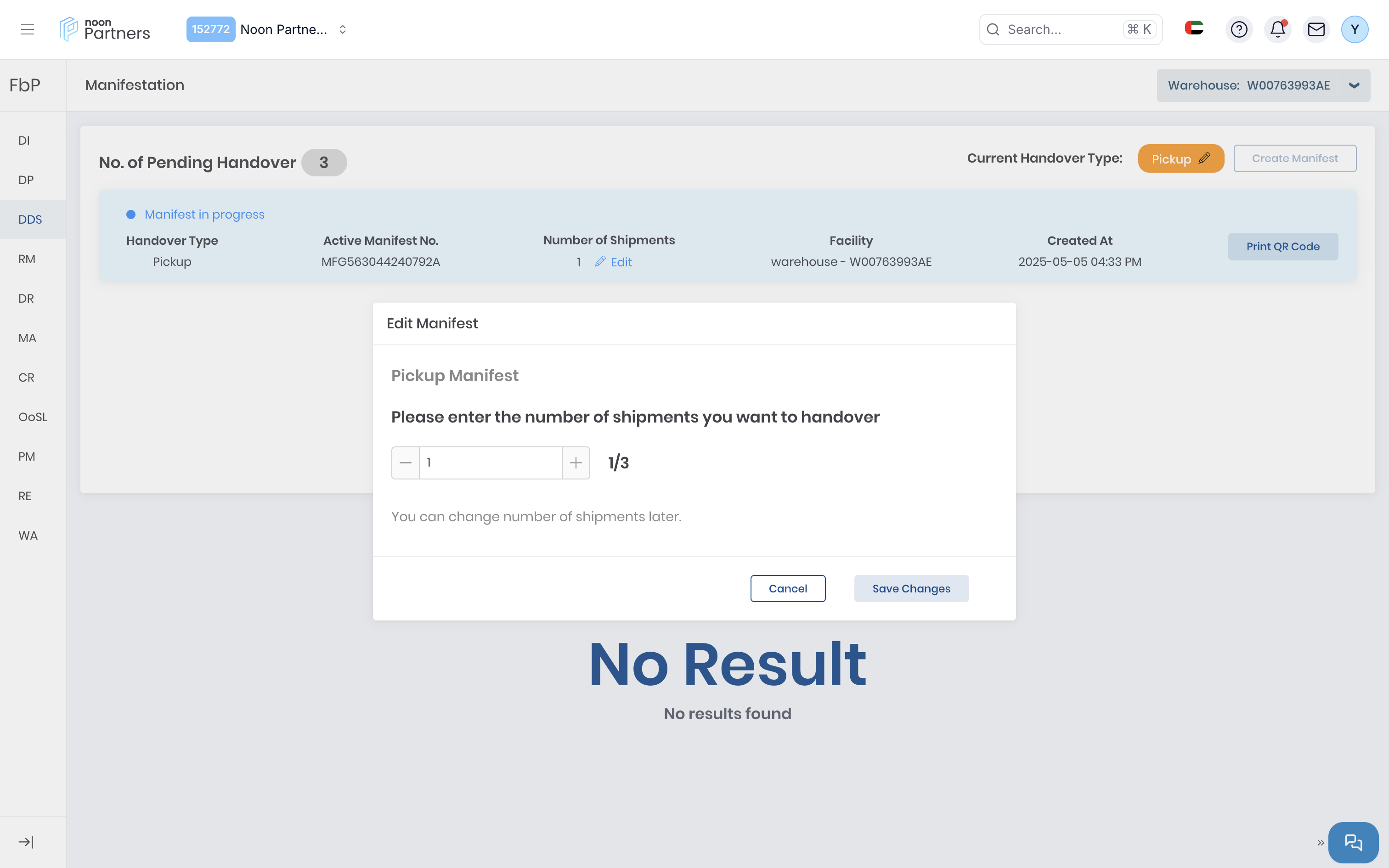

5. Enter the number of shipments you are handing over and click Save Changes.

info

We are working on an automatic manifestation option that will make this step optional.

You'll know this worked when the manifest appears as confirmed in Seller Lab and the shipments are no longer in pending status.

---

Step 5 — Pack and Hand Over

Packing: Pack the order in noon-approved packaging material and print the shipment label returned by GetShipment. Affix the label to the package.

Handover: noon collects based on the handover preference you selected during warehouse setup:

• Pickup — noon's courier collects from your warehouse based on processing time, manifestation data, and your handover settings.
• Drop-off — you deliver the packages directly to a noon logistics hub.

Once handed over, the shipment status updates automatically in the noon system.

---

Testing

Use CreateSandboxOrder (POST /fbpi/v1/sandbox-order/create) to place a test order against your warehouse without involving a real customer.

Python

session = get_authenticated_session()

response = session.post(
    "https://noon-api-gateway.noon.partners/fbpi/v1/sandbox-order/create",
    json={
        "warehouse_code": "WH-NOON-001",
        "idempotency_key": "test-001",
        "items": [
            {
                "status": "MP_ITEM_STATUS_CONFIRMED",
                "partner_sku": "MY-SKU-001"
            }
        ],
        "country_code": "ae"
    },
    headers={"User-Agent": "MyApp/1.0.0"},
    timeout=30,
)
response.raise_for_status()
sandbox_order = response.json()
# sandbox_order["fbpi_order_nr"] — use this to run the full order flow

Node.js

const client = await getAuthenticatedClient();

const response = await client.post(
    "https://noon-api-gateway.noon.partners/fbpi/v1/sandbox-order/create",
    {
        warehouse_code: "WH-NOON-001",
        idempotency_key: "test-001",
        items: [
            {
                status: "MP_ITEM_STATUS_CONFIRMED",
                partner_sku: "MY-SKU-001"
            }
        ],
        country_code: "ae"
    },
    { headers: { "Content-Type": "application/json", "User-Agent": "MyApp/1.0.0" } }
);
const sandboxOrder = response.data;
// sandboxOrder.fbpi_order_nr — use this to run the full order flow

Key notes for CreateSandboxOrder:

• idempotency_key must be unique per test run and at most 10 characters.
• partner_sku is optional — the server assigns a dummy value if omitted.
• country_code defaults to "ae" if omitted.

Running the test:

1. Call CreateSandboxOrder — your webhook receives a notification with the returned fbpi_order_nr.
2. Confirm your webhook returns HTTP 200.
3. Call GetFbpiOrder with the sandbox fbpi_order_nr and verify the response includes all expected fields.
4. Run the acknowledgment and shipment steps as you would in production.
5. Check the FBPI Orders Dashboard — the sandbox order should show a successful webhook acknowledgment and a created shipment.

Common failures:

Symptom	Likely cause	What to do
Webhook never fires	Warehouse not active or webhook URL misconfigured	Check warehouse status in Seller Lab
GetFbpiOrder returns 404	Order not yet created or wrong fbpi_order_nr	Wait a few seconds and retry
Shipment creation fails	AWB already used or invalid mp_item_nr	Use a new AWB from GetNoonLogisticsAWBs; verify item numbers match
Order shows as Killed	Webhook timed out or returned non-2xx	Check webhook logs; ensure your endpoint responds within the timeout

---

Next Steps

• Webhook Order Data — full reference for parsing the webhook payload and calling the order data APIs
• FBPI Orders Dashboard — monitor webhook attempts, acknowledgments, and shipment events
• GetFbpiOrder API Reference — full response schema
• CreateShipment API Reference — full request and response schema
• CreateSandboxOrder API Reference — full sandbox order schema
